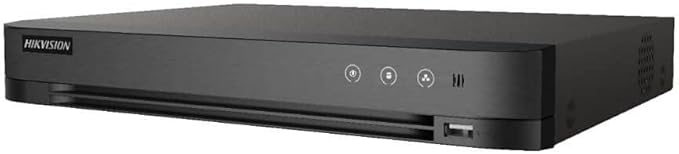

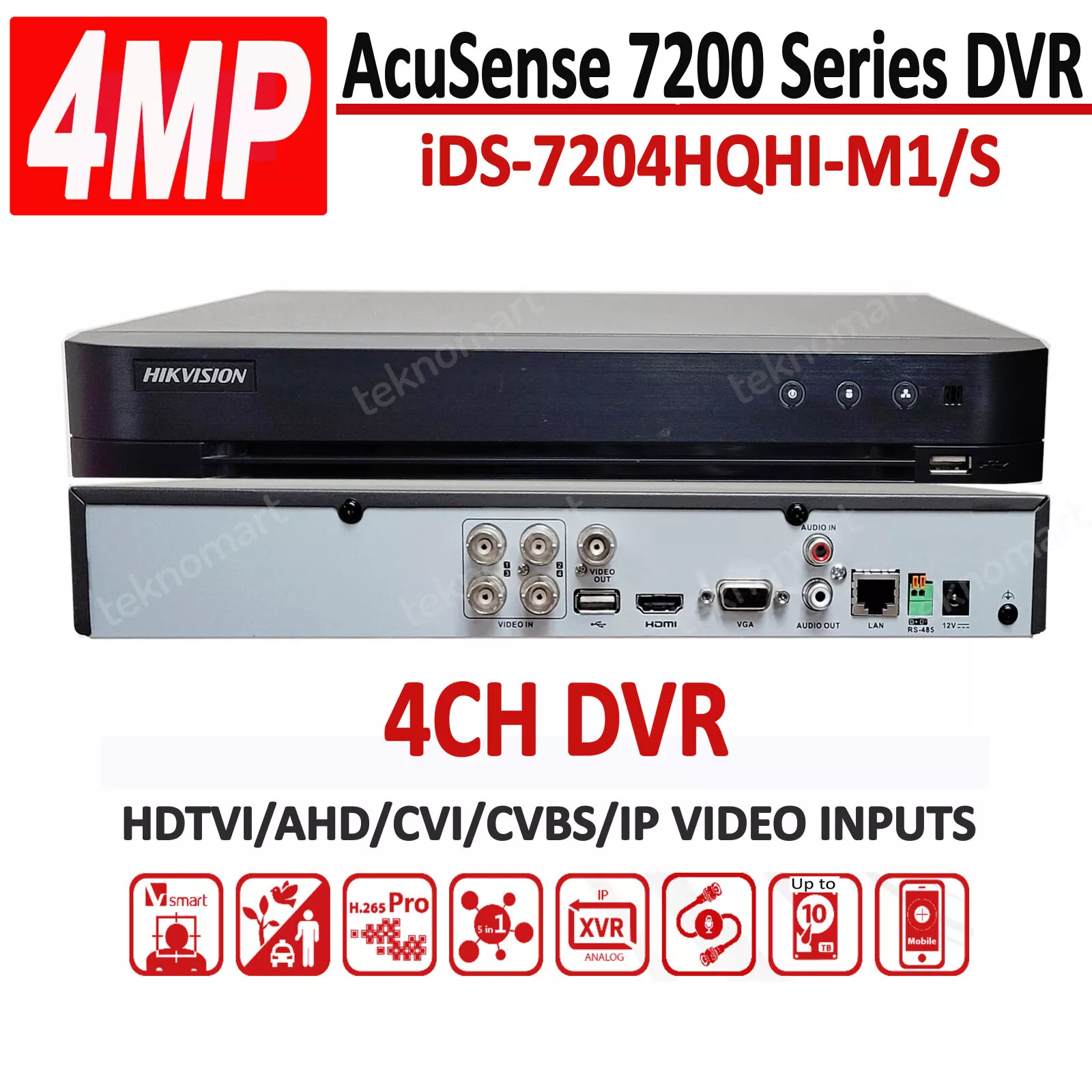

The Hikvision iDS-7204HQHI-M1/S is a 4-channel, 1U AcuSense DVR engineered to enhance surveillance systems with advanced features such as face detection and false alarm reduction.

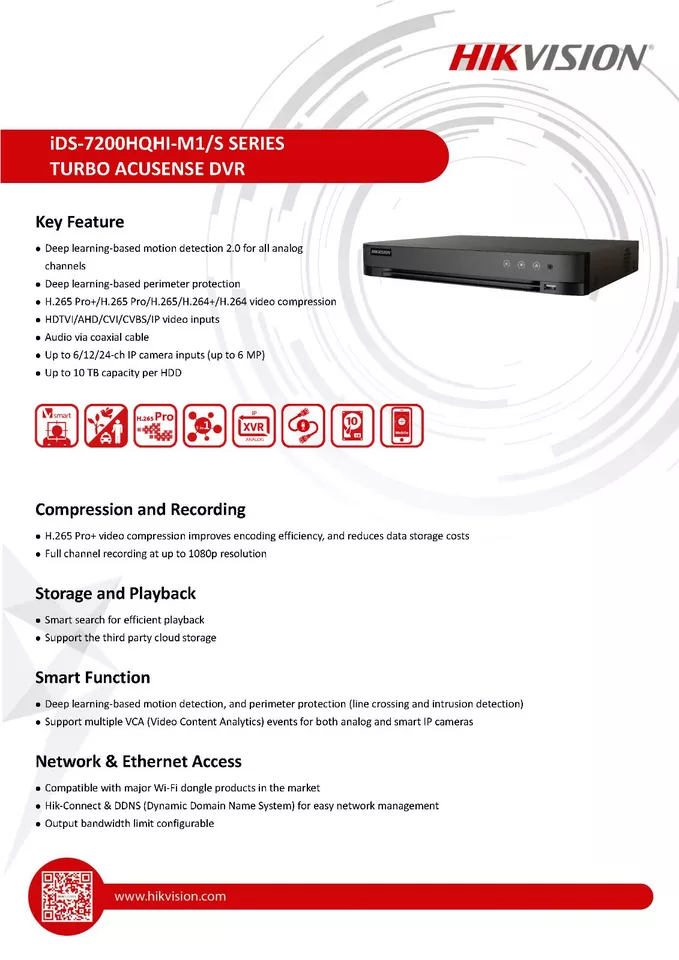

Key Features:

• Advanced Motion Detection: Utilizes deep learning algorithms to differentiate between humans and vehicles, significantly reducing false alarms caused by non-relevant movements.

• Efficient Video Compression: Employs H.265 Pro+ compression technology, enhancing encoding efficiency and reducing data storage requirements.

• Versatile Signal Compatibility: Supports adaptive input for five signal types: HDTVI, AHD, CVI, CVBS, and IP, providing flexibility in camera integration.

• Expanded Camera Support: Allows connection of up to six network cameras, accommodating future expansion needs.

• High-Definition Recording: Offers full-channel recording at up to 1080p resolution, ensuring clear and detailed footage.

Product Description:

The Hikvision iDS-7204HQHI-M1/S AcuSense DVR is designed to elevate your surveillance capabilities with intelligent features and robust performance. Its deep learning-based motion detection distinguishes between human and vehicle targets, effectively minimizing false alarms and ensuring that you focus only on relevant security events. The efficient H.265 Pro+ compression reduces bandwidth and storage requirements without compromising video quality. With support for multiple signal inputs and the ability to connect additional IP cameras, this DVR offers unparalleled flexibility and scalability for various surveillance applications.

What's Inside the Box:

• Hikvision iDS-7204HQHI-M1/S DVR Unit

• Power Adapter

• USB Mouse

• IR Remote Control

• Quick Start Guide

• Screws for HDD Installation

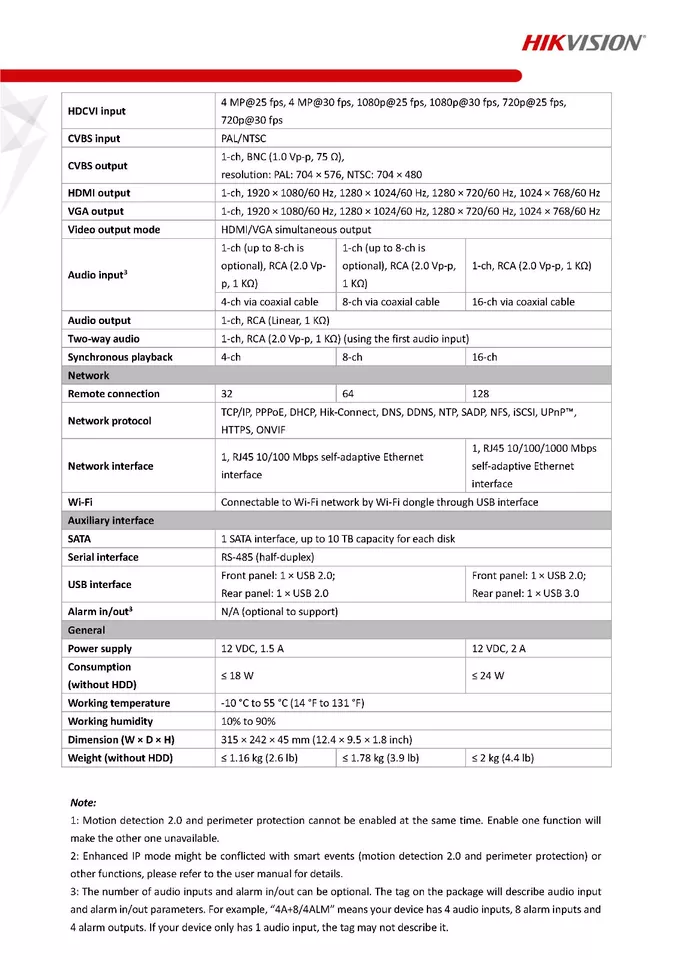

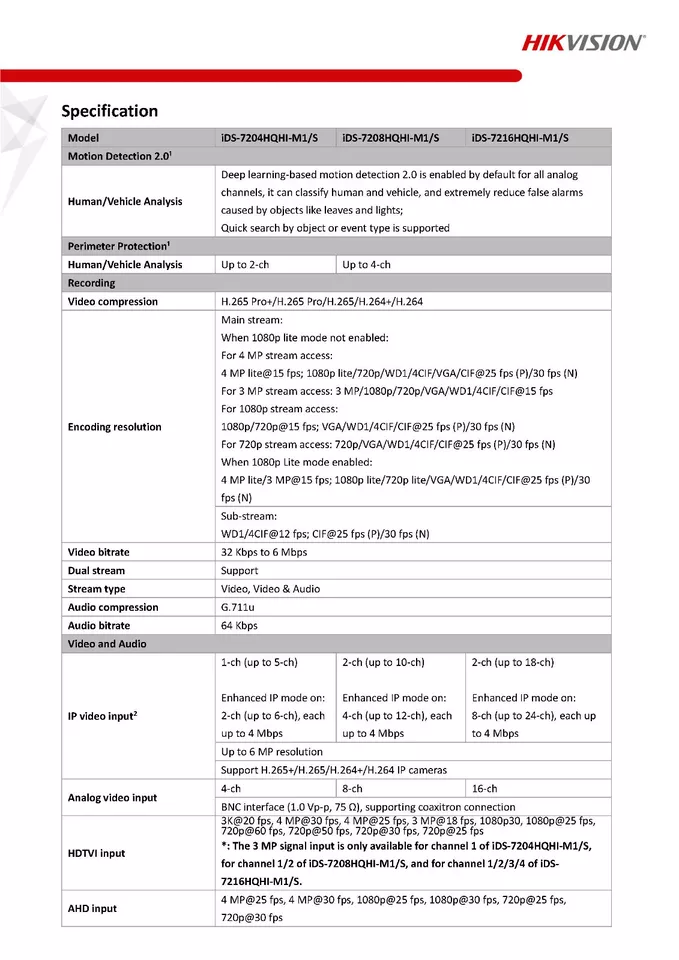

  Technical Specifications:

  • Video/Audio Input:

    • Analog Camera Input: 4 channels
    • IP Camera Input: Up to 6 channels
    • Audio Input: 4 channels via coaxial cable

  • Video/Audio Output:

    • HDMI Output: 1 channel, up to 1920 × 1080 resolution
    • VGA Output: 1 channel, up to 1920 × 1080 resolution
    • Audio Output: 1 channel

  • Decoding/Recording:

    • Decoding Format: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
    • Recording Resolution: Up to 1080p
    • Frame Rate: Up to 15 fps at 1080p

  • Storage:

    • SATA: 1 interface for HDD (up to 10 TB capacity)

  • External Interface:

    • Network Interface: 1 RJ-45 10/100 Mbps Ethernet port
    • USB Interface: 2 ports (1 front USB 2.0, 1 rear USB 2.0)

  • General:

    • Power Supply: 12 VDC
    • Power Consumption: ≤ 15 W (without HDD)
    • Dimensions: 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inches)
    • Weight: ≤ 2 kg (4.4 lbs) (without HDD)

The Hikvision iDS-7204HQHI-M1/S AcuSense DVR is an ideal solution for those seeking advanced surveillance capabilities with efficient storage and flexible integration options.
